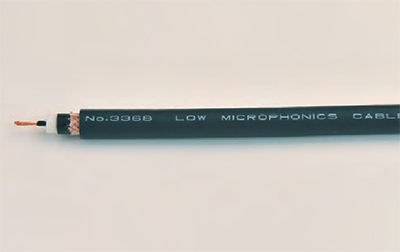

W3368 3368 is a new cable designed for truly high performance sound while simultaneously being rugged enough for live stage and performance use. This large diameter cable is designed with lower capacitance for the purest possible sound, while not being so low to cause performance problems by being outside the design range of available instrument pickups.
Coaxial configuration gives the most accurate tone. A challenge for large diameter coaxial cables is that the center conductor must move inside the structure when the cable is flexed, so such cables can be delicate when handled roughly. The proprietary composite braid shield structure of 3368 makes the cable more rugged, and this
new design maintains flexibility and performance even when used in a stage and touring environment.
 A new method has been used to keep handling noise extremely low, so this cable can be used for any application where high impedance circuits (guitar pickups, sensor cables) with very low loss are needed.

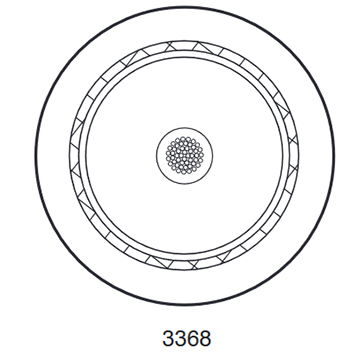

| SPECIFICATIONS
|
| Part No. |
W3368 |
| Conductor |
Details |
50/0.12OFC |
| Size |
0.565mm² (#20AWG) |
| Insulation |
Ov. Dia.(mm) |
1.5Ø (0.059") |
| Material |
Conductive PE |
| Color |
Black |
| Sub-Shield |
Ov. Dia.(mm) |
5.7Ø (0.224") |
| Material |
Conductive PVC (Carbon PVC) |
| Color |
Black |
| Shield |
Type |
Composite Braid Shield |
| Details |
0.12OFC/7/12 + 167Dtec/2/12 |
| Jacket |
Ov. Dia.(mm) |
8.0Ø (0.315") |
| Material |
PVC |
| Color |
Black |
| Roll Sizes |
100m(328Ft)/153m(500Ft) |
| Weight per 100m (328Ft) roll |
6.2 Kg |
Back To Top
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Part No. |
W3368 |
| DC Resistance at 20°C |
Inner Conductor |
0.033Ω/m(0.010W/Ft) |
| Shield Conductor |
0.024Ω/m(0.0073Ω/Ft) |
| Capacitance at 1kHz, 20°C |
70pF/m (21.4pF/Ft) |
| Inductance |
0.4µH/m (0.012µH/Ft) |
| Electrostatic Noize* |
LOD (Limit of Detection) |
| Electromagnetic Noise At 10kHz* |
LOD (Limit of Detection) |
| Microphonics* |
LOD (Limit of Detection) |
| Voltage Breakdown |
Must withstand at DC 500V/15sec. |
| Insulation Resistance |
100000 MΩ ×
m Min. at DC 500V , 20°C |
| Flex Life |
15,000 cyles |
| Tensile Strength (26°C, 65%RH) |
504N |
| Emigration |
Non-emigrant to ABS resin |
| Applicable Temperature |
-20°C‾ +60°C(-4°F‾ +140°F) |
*Using standard testing methods of Mogami Wire & Cable Corp.
|
